Modular High-Capacity Containment Wall System

The Ultimate Industrial Spill Containment Solution

Modular High-Capacity Containment Wall System

The Ultimate Industrial Spill Containment Solution

Prevent chemical spills from spreading and minimise environmental damage, safety risks and clean-up costs with our brand new modular, hard-walled bunded containment system. It can be assembled in several flexible configurations and is engineered to safely contain large spills from tanks, silos and IBCs.

The wall system, which can be temporary or permanent, is suitable for a range of surface types, including concrete, hardcore, tarmac, sand, grass, and soil.

The walls, corners and locking pegs are engineered to fit together without special tooling or equipment. Configuration, relocation, and reuse are easy, making it a cost-effective choice for compliant spill control in a range of industrial applications.

The system supports effective spill containment in multiple industries including chemical manufacturing, oil & gas, transport & logistics, aerospace, waste management, utilities, emergency services, or pharmaceuticals.

  • Modular, Hard-Walled Bunded System: Ideal for long-term, compliant storage of liquid in tanks and IBCs
  • Customisable Walls: Modular wall sections and corners are easily assembled to form temporary or permanent containment areas of various size
  • Choose Your Capacity: Select from multiple capacities between 5,000 L and 316,000 L
  • Surge Flow Management: Curved internal wall faces manage surge flows and prevents liquid overtopping
  • Tool-Free Setup: Moulded-in locking pegs allow for quick and easy setup without special tools
  • Efficient Storage: Wall sections are stackable for compact storage and economical shipping
  • Versatile Placement: Suitable for various surfaces like concrete, tarmac, sand, grass, and soil – underlay may be required on harder surfaces
  • Enhanced Compatibility: Works with 1mm LLDPE liner, secured with large capping clips
  • Optimised Design: Efficiently designed for shipping, stacking, and storage on a standard pallet
Modular Wall

Product Table

x

Component

Colour

H x W x D (mm)

Weight (kg)

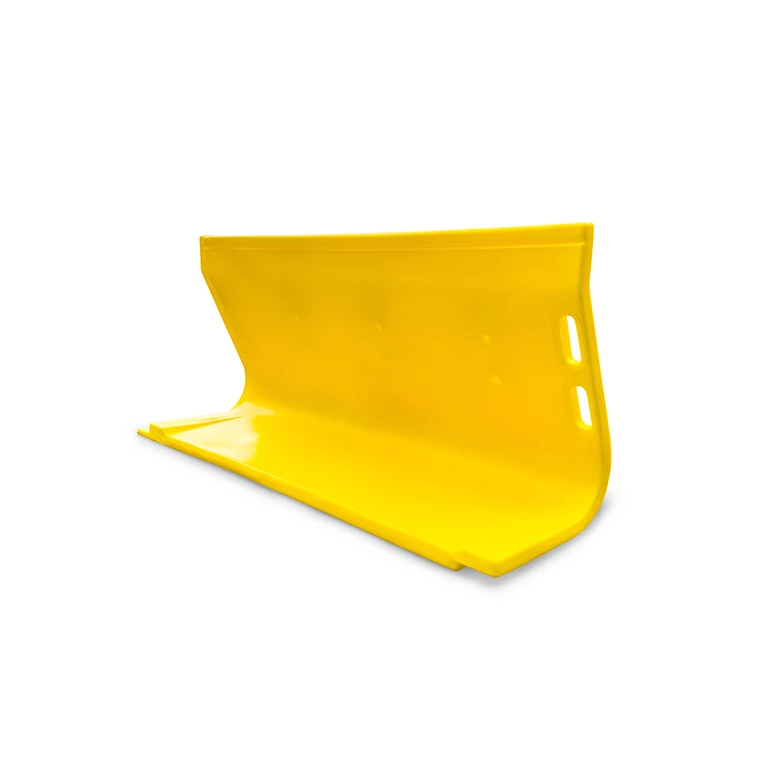

Wall

SJ-800-001

Yellow

915 x 2030 x 680

40

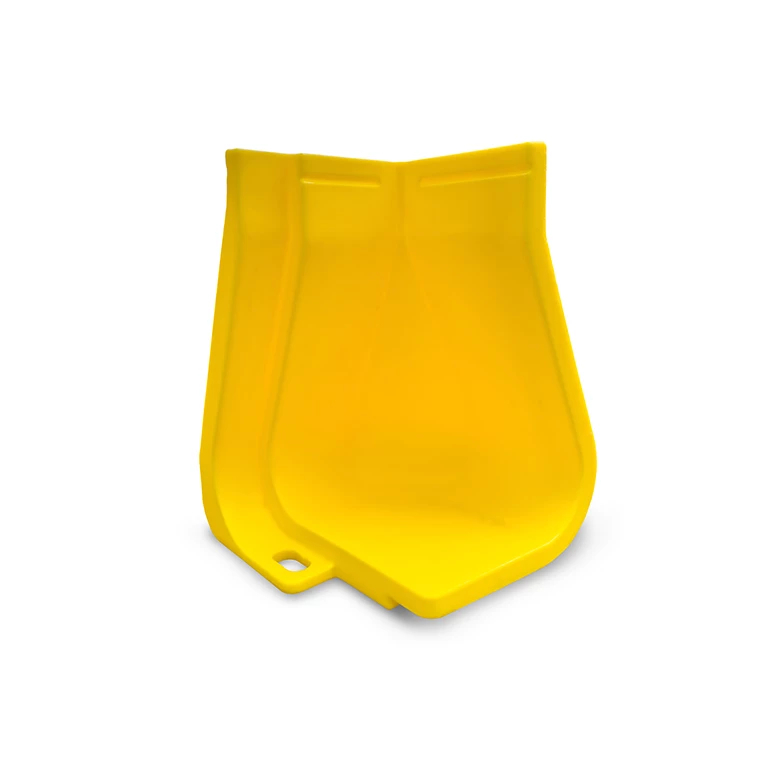

Corner

SJ-800-101

Yellow

915 x 745 745

20

Wall cap

SJ-800-201

Yellow

65 x 1900 x 115

2.5
